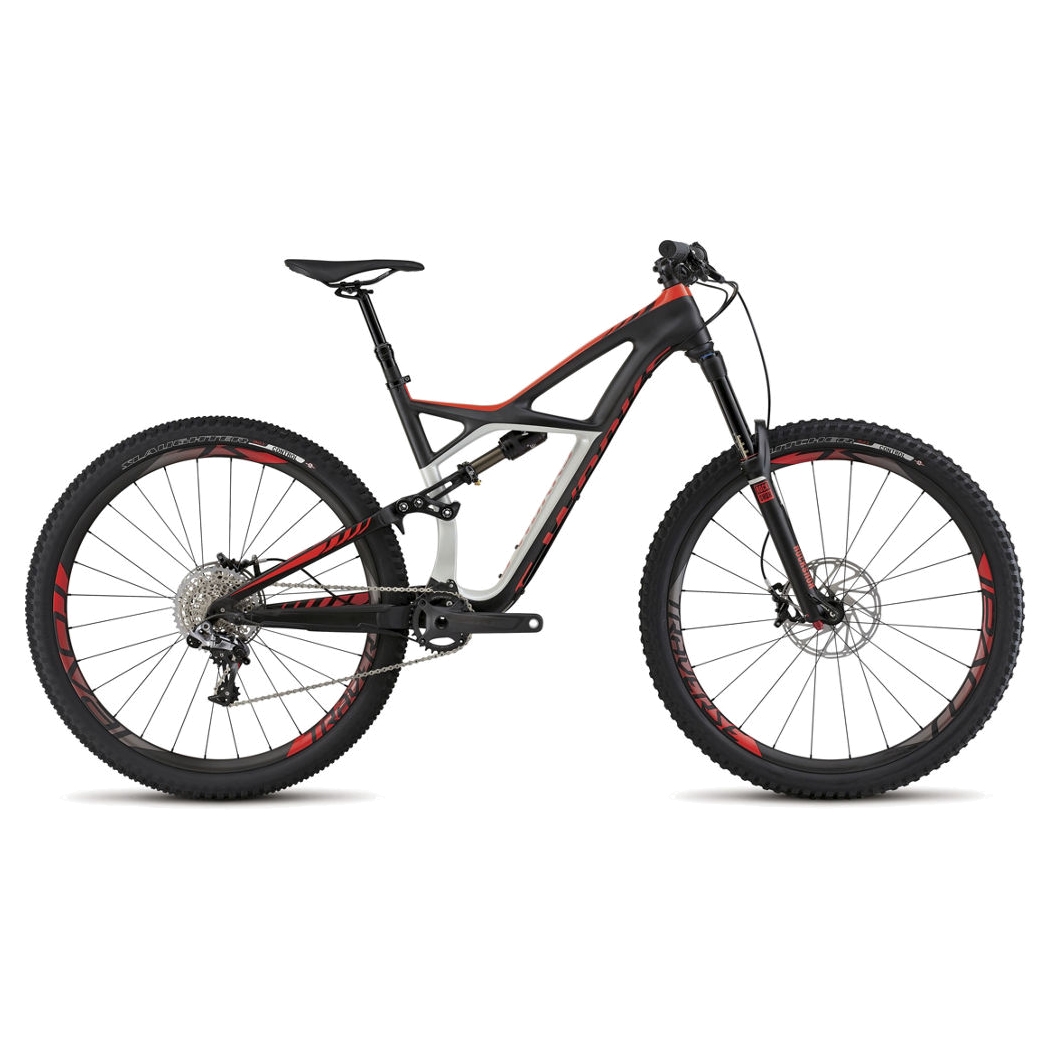

Specialized S-Works Enduro FSR Carbon 29 Carbon/Dirty White/Rocket Red

Cykelbeskrivning

A true all-mountain machine, the top-shelf S-Works Enduro FSR Carbon 29 has 155mm of rear wheel travel, a FACT IS-X 11m carbon front triangle, a Custom Cane Creek Double Barrel air shock, RockShox Pike RCT3 fork, SRAM XX1 11-speed drivetrain featuring XX1 carbon crankset, and thru-axle Roval Traverse SL 29 142+ wheelset for an ultra-lightweight ride.

>FACT 11m carbon frame w/ All-Mountain geometry and 155mm travel for pure capability.
>Custom Cane Creek DB Inline shock for tunability and control over challenging terrain.
>Custom RockShox Pike RCT3 160mm-travel fork w/ 15mm axle is tuned to charge technical terrain.
>Roval Traverse SL Fattie 142+ carbon wheelset for durable and tubeless-ready performance.
>Aggressive tread and lightweight Specialized Butcher Control front tire.
>Specialized Slaughter Control rear tire for fast-rolling performance on challenging terrain.
>SRAM Guide RS Carbon brakes w/ metallic pads and reach adjust for premium stopping power.
>SRAM XX1 11-speed rear derailleur for high-performance XC racing componentry.
>SRAM XX1 11-speed trigger shifter for efficiency and simplicity on the trail.
>Specialized Command Post IR w/ remote lever to adjust saddle height on-the-fly.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas.

Ram

FACT IS-X 11m carbon, 29" geometry, FACT IS construction, FACT carbon front triangle, M5 alloy rear triangle, tapered headtube, PF30 BB, internal Command Post IR routing, 142mm dropouts, full cartridge bearing pivots, replaceable derailleur hanger, 155mm travel

Stötdämpare bak

Custom Cane Creek DB AIR Inline, high/low-speed compression and rebound adj., w/ climb switch, 8.5"x2.25"

Gaffel eller ev. stötdämpare fram

Custom RockShox Pike RCT3 29, Solo Air spring, tapered alloy steerer, w/ lockout, compression, rebound adj., 15mm thru-axle, 160mm travel

Styrlager

1-1/8 and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings

Styrstolpe eller ev. styrstam

Syntace F109, 6-degree rise

Styre

Specialized XC, mini rise, 7050 alloy, 8-backsweep, 6-upsweep, 10mm rise, 31.8mm

Handtag

Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, Others: XL

Bromsar fram

SRAM Guide RS Carbon, metallic pads, 200mm Centerline rotor

Bromsar bak

SRAM Guide RS Carbon, metallic pads, 180mm Centerline rotor

Bromshandtag

SRAM Guide RS Carbon, carbon lever, w/ cartridge bearing, reach adjust

Växelförare bak

SRAM XX1, 11-speed

Växelreglage

SRAM XX1, 11-speed, trigger

Kassett eller ev. drev bak

SRAM XX1, 11-speed, 10-42

Kedja

SRAM PC-XX1, 11-speed, w/ PowerLink

Vevparti

S-Works FACT carbon, custom XX1 chainring, OSBB, 30T

Vevlager

Praxis, PF30, OS press-in bearings, sealed cartridge

Pedaler

Resin test ride, w/ toe clips, CEN std.

Fälgar

Roval Traverse SL Fattie 29, carbon, 30mm inner width, 24/28h

Nav fram

Roval Traverse, w/ 15/20mm thru-axle, 24h

Nav bak

Roval Traverse SL 29 142+, XX1 driver body, DT Swiss Star Ratchet, 28h

Ekrar

DT Swiss Revolution

Däck fram

Specialized Butcher Control, 60TPI, 2Bliss Ready, folding bead, dual compound, 29x2.3"

Däck bak

Specialized Slaughter Control, 60TPI, 2Bliss Ready, folding bead, 29x2.3"

Innerslang

Ultralight, presta valve

Sadel

Body Geometry Henge Expert, hollow Ti rails, 143mm

Sadelstolpe

Command Post IR, 3-position height adjustable, alien head design, bottom mount cable routing, w/ remote adjust SRL, 30.9mm, 125mm travel

Sadelstolpsklämma

Specialized 7050 alloy, single bolt, 34.9mm

Ramgeometri

Frame size

M L XL.

Seat tube length center to top

445mm 470mm 520mm.

Top tube length horizontal

594mm 617mm 640mm.

Top tube length actual

557mm 577mm 602mm.

Chainstay length

430mm 430mm 430mm.

Bottom bracket height

351mm 351mm 351mm.

Seat tube angle actual

69° 69° 69°.

Seat tube angle effective

75° 75° 75°.

Head tube angle

67.5° 67.5° 67.5°.

Wheel base

1159mm 1183mm 1209mm.

Standover height

777mm 783mm 789mm.

Head tube height

110mm 120mm 135mm.

Handlebar width

750mm 750mm 750mm.

Stem length

60mm 75mm 75mm.

Crank length

175mm 175mm 175mm.

Seatpost length

425mm 425mm 425mm.

Stack

632mm 641mm 655mm.

Reach

425mm 445mm 465mm.
