Specialized S-Works Epic FSR Carbon 29 Frameset (Rampaket) Carbon/White
Artikelnummer.
73415-0002 (S)
Övriga art.nr.
73415-0003 (M)
73415-0004 (L)
73415-0005 (XL)
Cykelbeskrivning

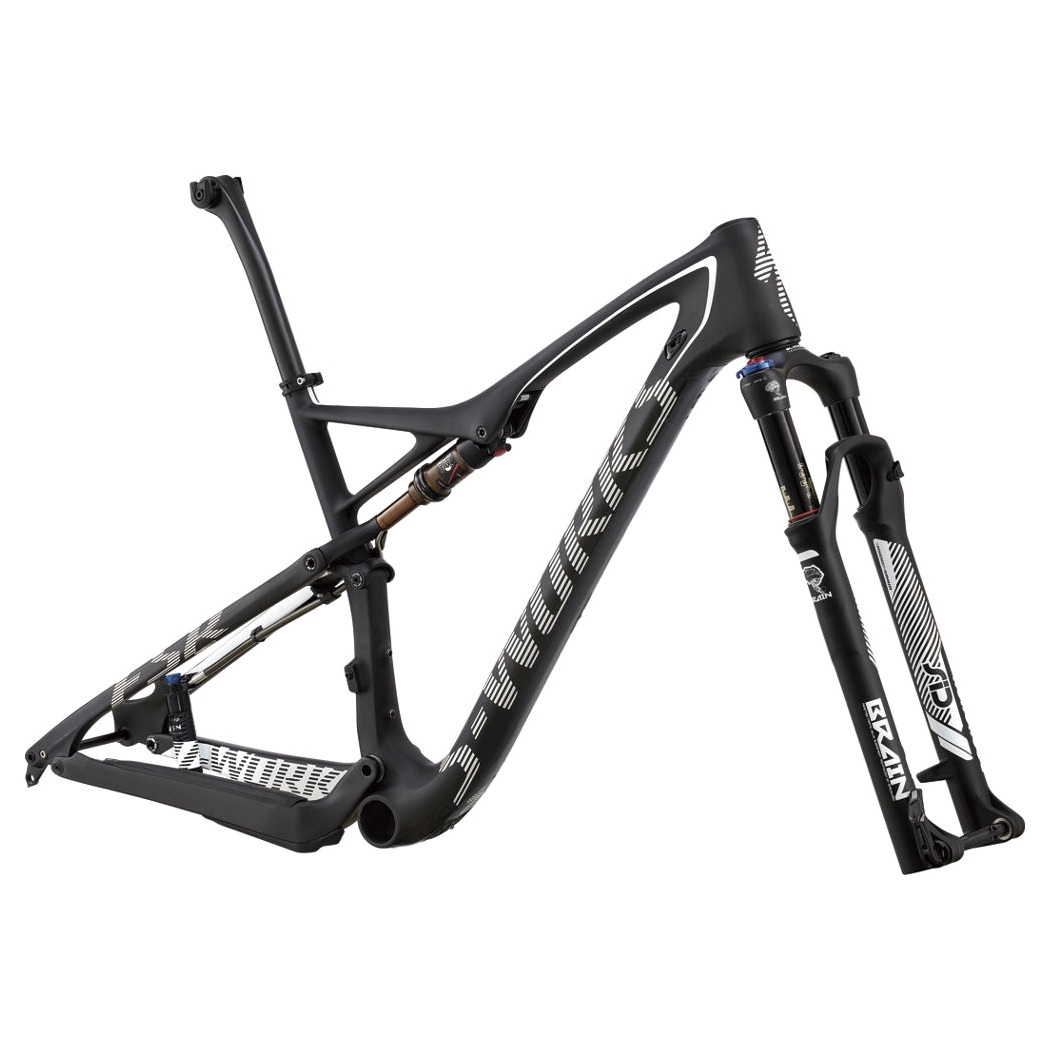

The S-Works Epic features a FACT carbon frame with a FOX/Specialized rear shock featuring AUTOSAG and Mini-Brain technology and 100mm of travel. Up front a custom RockShox SID World Cup 29 fork offers 100mm of travel, just waiting for a custom cross-country build.
>FACT 11m carbon, 100mm-travel, FSR frame w/ full SWAT kit for the ultimate XC race machine.
>Specialized/FOX Brain shock w/ AUTOSAG knows the difference between smooth and rough terrain.
>RockShox SID World Cup fork w/ Brain damping and 100mm travel for race-ready XC performance.
Cykelspecifikationer
Vikt
Uppgift om vikt saknas.
Ram
S-Works FACT 11m carbon, 29" geometry, FACT IS construction, tapered headtube, carbon PF30 BB, full internal cable routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, SWAT EMT tool cradle, 100mm travel
Stötdämpare bak
FOX/Specialized remote Mini-Brain w/ AUTOSAG, Kashima coating, inertia valve, BrainFade adjust, 205x53mm, 100mm travel
Gaffel eller ev. stötdämpare fram
RockShox SID World Cup 29 Brain, Solo Air spring, tapered carbon steerer, top-mount BrainFade, rebound adjust, 15mm thru-axle, 100mm travel
Styrlager
1-1/8" and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings
Sadelstolpe
S-Works FACT carbon, 20mm offset, 27.2mm
Sadelstolpsklämma
Specialized 7050 alloy, single Ti bolt, 31.8mm
Ramgeometri
Frame size
S M L XL.
Seat tube length center to top
400mm 434mm 470mm 520mm.
Top tube length
, Horizontal 564mm 593mm 620mm 647mm.
Top tube length
, Actual 529mm 557mm 583mm 611mm.
Bottom bracket drop
40mm 40mm 40mm 40mm.
Bottom bracket height
332mm 332mm 332mm 332mm.
Chainstay length
448mm 448mm 448mm 448mm.
Seat tube angle actual
68.9° 69.25° 69.6° 70°.
Seat tube angle effective
73.75° 73.75° 73.75° 73.75°.
Head tube angle
70.5° 70.5° 70.5° 70.5°.
Wheel base
1082mm 1112mm 1140mm 1168mm.
Standover height
770mm 774mm 780mm 793mm.
Head tube length
90mm 105mm 120mm 140mm.
Stack
587mm 601mm 615mm 634mm.
Reach
393mm 418mm 441mm 462mm.
Handlebar width
700mm 700mm 700mm 700mm.
Stem length
75mm 90mm 100mm 110mm.
Crank length
170mm 175mm 175mm 175mm.
Seatpost length
350mm 400mm 400mm 400mm.
