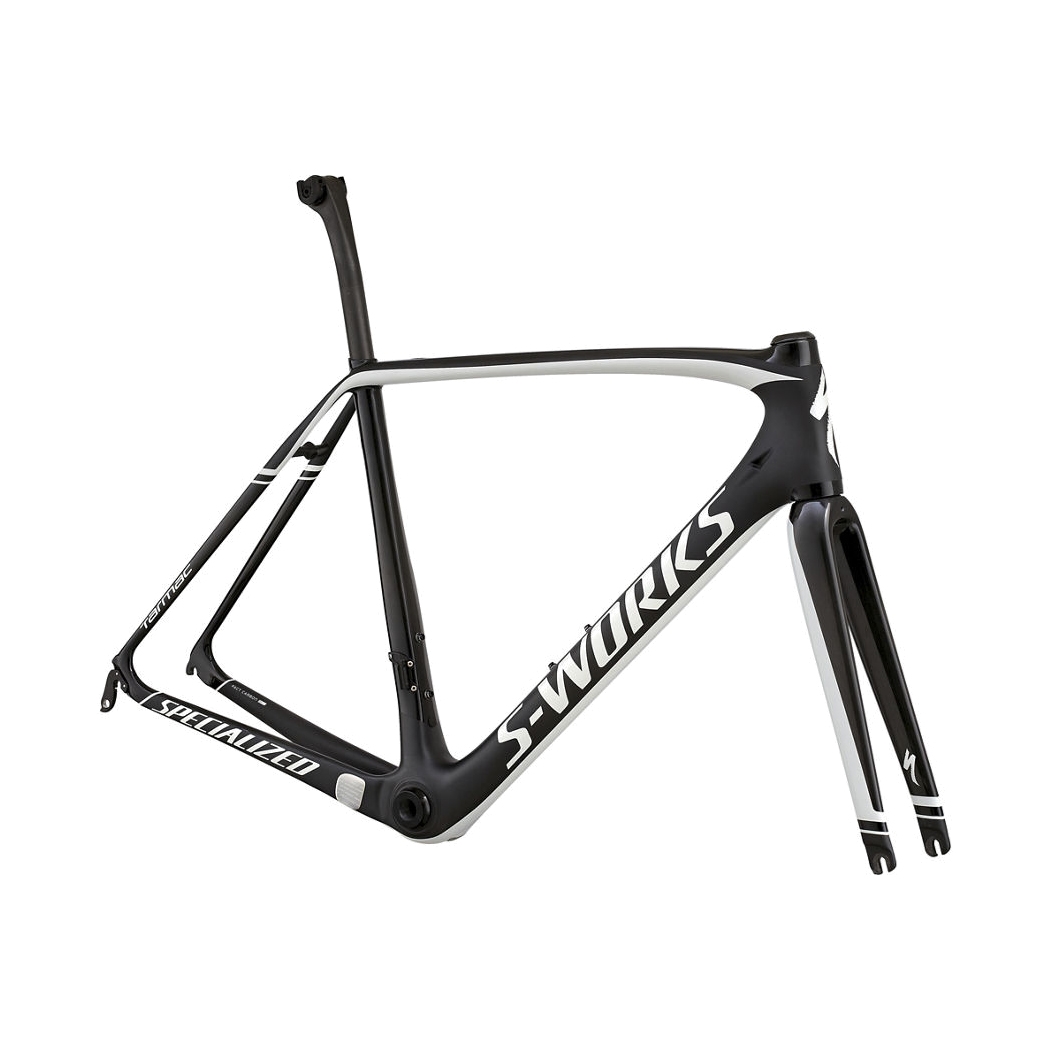

Specialized S-Works Tarmac Frameset (Rampaket) Carbon/White

Cykelbeskrivning

The new S-Works Tarmac is Rider-First Engineered™ to provide every size frame with the hill destroying stiffness and legendary descending prowess the Tarmac is known for. It's a no compromise race-bred machine ready to be built up exactly how you want it.

>S-Works FACT 11r carbon frame, Rider-First Engineered w/ tapered headtube and OSBB.
>Full monocoque FACT carbon fork with a tapered carbon steerer is both light and stiff.
>S-Works FACT carbon seatpost is super light and stiff for optimal power transfer.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas.

Ram

S-Works FACT 11r carbon, FACT construction, tapered/shaped 1-1/8" to size-specific lower headtube, compact race design, internal cable routing

Gaffel eller ev. stötdämpare fram

S-Works FACT carbon, full monocoque, size-specific taper

Styrlager

1-1/8" upper, size-specific lower, hybrid cartridge lightweight bearings, 8mm carbon cone spacer, w/ 25mm of carbon spacers

Vevlager

CeramicSpeed, ceramic bearings

Fälgar

Sadelstolpe

S-Works FACT carbon, 20mm offset, 27.2mm

Sadelstolpsklämma

Specialized, integrated wedge

Ramgeometri

Frame size

49 52 54 56 58 61.

Seat tube length bottom bracket center to top

431mm 462mm 481mm 501mm 522mm 553mm.

Top tube length horizontal

518mm 537mm 548mm 565mm 582mm 600mm.

Bottom bracket drop

71.5mm 71.5mm 69mm 69mm 67.5mm 67.5mm.

Chain stay length

405mm 405mm 405mm 405mm 407mm 410mm.

Seat tube angle

75.5° 74° 73.5° 73.25° 73° 72.5°.

Head tube angle

72.25° 73° 73° 73.5° 73.5° 74°.

Fork rake

45mm 45mm 45mm 43mm 43mm 43mm.

Trail

62mm 57mm 57mm 56mm 56mm 53mm.

Front to center

576mm 576mm 583mm 591mm 605mm 612mm.

Wheel base

970mm 970mm 978mm 986mm 1003mm 1013mm.

Stand over height

730mm 755mm 775mm 795mm 826mm 850mm.

Head tube length

100mm 120mm 140mm 160mm 190mm 210mm.

Handle bar width

400mm 420mm 420mm 420mm 440mm 440mm.

Stem length

75mm 90mm 100mm 100mm 110mm 110mm.

Crank length

170mm 170mm 172.5mm 172.5mm 175mm 175mm.

Seat post length

350mm 350mm 350mm 400mm 400mm 400mm.

Reach

386mm 386mm 387mm 395mm 402mm 408mm.

Stack

504mm 526mm 543mm 564mm 591mm 612mm.
