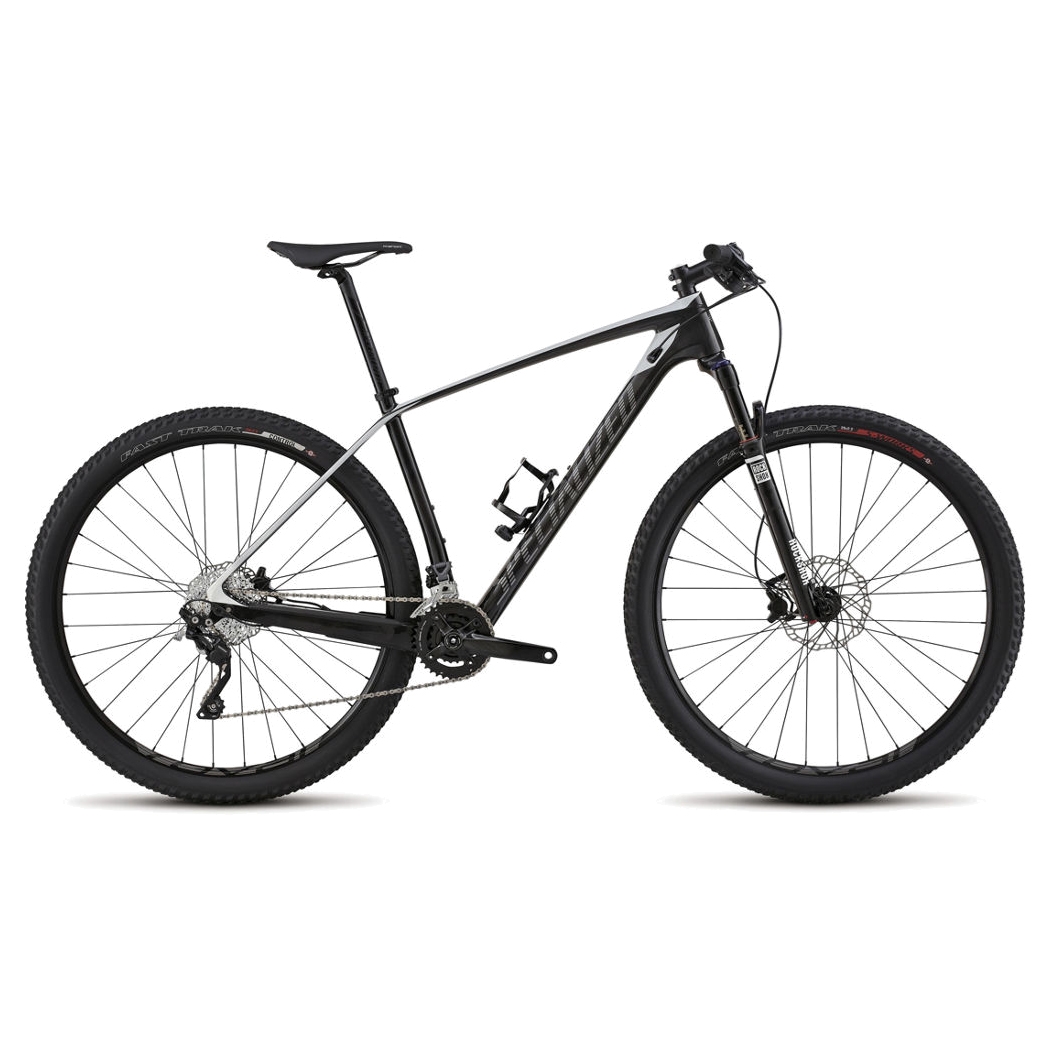

Specialized Stumpjumper Hardtail Comp Carbon 29 Carbon/Dream Silver/White

Cykelbeskrivning

With an 90mm-travel RockShox Reba fork, 2X10 drivetrain and all-new carbon frame, the Stumpjumper Comp Carbon 29 is a lightweight cross-country machine with podium finishes in sight.

>FACT 9m carbon frame w/ 29er geometry and PF30 BB for a responsive and race-ready design.
>RockShox Reba RL 90mm-travel fork w/ 15mm thru-axle provides XC traction and control.
>New Roval 29 rims w/ Hi Lo hubs, 142+ rear hub spacing and 12mm axle for confident control.
>2Bliss Ready S-Works/Control Fast Trak tire combo for high-traction and fast-rolling speed.
>Custom SRAM PF30 crankset for stiff, yet lightweight pedaling performance.
>Magura MTS hydraulic disc brakes w/ Storm SL rotors for total control and performance.
>Shimano XT 10-speed rear derailleur is tough, lightweight, and delivers pinpoint shifts.
>Shimano SLX 10-speed trigger for dialed drivetrain performance.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas.

Ram

FACT 11m carbon, 29" geometry, FACT IS construction, tapered headtube, carbon PF30 BB, full internal shift/brake routing, 142mm dropouts, PM 160 rear brake, replaceable alloy rear derailleur hanger

Gaffel eller ev. stötdämpare fram

RockShox Reba RL 29, Solo Air spring, tapered alloy steerer, w/ lockout, compression, rebound adjust, 15mm thru-axle, S: 80mm travel, Others: 90mm

Styrlager

1-1/8" and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings

Styrstolpe eller ev. styrstam

Specialized, forged alloy, 6-degree rise

Styre

Specialized flat, 8-degree backsweep, 31.8mm

Handtag

Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, Others: XL

Bromsar fram

Magura MTS, hydraulic disc, Hi Friction pad, alloy master cylinder, alloy caliper, Storm SL rotor, S/M: 180mm rotor, Others: 160mm

Bromsar bak

Magura MTS, hydraulic disc, Hi Friction pad, alloy master cylinder, alloy caliper, 160mm Storm SL rotor

Bromshandtag

Magura MTS, alloy lever

Växelförare fram

SRAM X7, 10-speed, top pull

Växelförare bak

Shimano XT Shadow Plus, 10-speed, SGS long cage

Växelreglage

Shimano SLX, 10-speed, trigger

Kassett eller ev. drev bak

SRAM PG 1030, 10-speed, 11-36

Kedja

SRAM PC 1031, 10-speed, w/ PowerLink, nickel finish

Vevparti

Custom SRAM S-1250, 7050 alloy arms, 10-speed XC double, PF30 spindle, 36/22

Vevlager

SRAM, PF30, OS press-in bearings, sealed cartridge

Pedaler

Resin test ride, w/ toe clips, CEN std.

Fälgar

Roval 29, alloy, 21mm inner width, 32h

Nav fram

Specialized Hi Lo disc, sealed cartridge bearings, 15mm thru-axle, 32h

Nav bak

Specialized Hi Lo disc, 4 sealed cartridge bearings, 12mm thru-axle, 32h

Ekrar

DT Swiss Industry, stainless

Däck fram

S-Works Fast Trak, 120TPI, 2Bliss Ready, folding bead, 29x2.2"

Däck bak

Specialized Fast Trak Control, 60TPI, 2Bliss Ready, folding bead, 29x2.0"

Innerslang

Ultralight, presta valve

Sadel

Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm

Sadelstolpe

Specialized alloy, single bolt, 30.9mm

Sadelstolpsklämma

Alloy, 32.6mm

Ramgeometri

Frame size

S M L XL.

Seat tube length center to top

394mm 434mm 470mm 505mm.

Top tube length horizontal

565mm 593mm 620mm 643mm.

Top tube length actual

551mm 574mm 598mm 622mm.

Chainstay length

430mm 430mm 430mm 430mm.

Bottom bracket drop

61mm 61mm 61mm 61mm.

Bottom bracket height

310mm 310mm 310mm 310mm.

Seat tube angle effective

73.5° 73.5° 73.5° 73.5°.

Head tube angle

71° 71° 71° 71°.

Wheel base

1047mm 1078mm 1105mm 1131mm.

Standover height

760mm 799mm 826mm 849mm.

Head tube height

90mm 100mm 115mm 130mm.

Handlebar width

700mm 700mm 700mm 700mm.

Stem length

75mm 90mm 105mm 105mm.

Crank length

170mm 175mm 175mm 175mm.

Stack

592mm 610mm 625mm 639mm.

Reach

390mm 414mm 437mm 458mm.

Ground to top

902mm 920mm 935mm 949mm.

Bottom bracket height

0mm 0mm 0mm 0mm.
