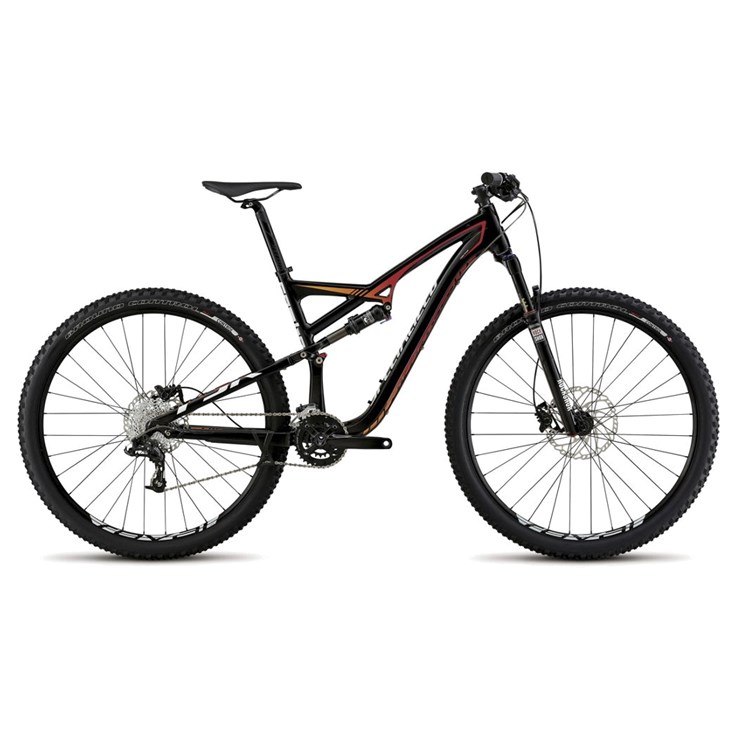

Specialized Camber FSR Comp 29 Black/Red/White

Cykelbeskrivning

The 110mm-travel Camber FSR Comp utilizes an M5 alloy frame, custom SRAM S-1250, 10-speed XC Trail double crankset, and 110mm of travel to create an ultra-capable trail machine.

>M5 alloy FSR frame w/ 29er geometry and 110mm of travel for a lightweight trail weapon.
>Custom Fox Float CTD Evolution Series shock w/ AUTOSAG for premium on-trail performance.
>Custom RockShox Reba RC 110mm-travel fork w/ 15mm thru-axle provides XC traction and control.
>Roval 29 rims w/ Hi Lo hubs are lightweight and durable for smooth handling at speed.
>Custom SRAM crankset for stiff, yet lightweight pedaling performance.
>Shimano Deore hydraulic disc brakes for total control and stopping power.
>SRAM X5, 10-speed, mid cage rear derailleur for lightweight, pinpoint shifts.
>Lightweight and compliant Specialized alloy seatpost.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas.

Ram

M5 hydroformed tubing, 29" geometry, tapered headtube, threaded BB, internal Command Post BlackLite routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, bolt-on cable guides, 110mm travel

Stötdämpare bak

Custom FOX Float CTD Evolution w/ AUTOSAG, air spring, lockout, rebound adjust, 197x48mm

Gaffel eller ev. stötdämpare fram

Custom RockShox Reba RC 29, Solo Air spring, tapered alloy steerer, compression and rebound adjust, 110mm travel

Styrlager

1-1/8 and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings

Styrstolpe eller ev. styrstam

Specialized Trail, forged alloy, 4-bolt, 8-degree rise

Styre

Specialized XC, mini rise, 6000 butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm

Handtag

Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, Others: XL

Bromsar fram

Shimano Deore BR-M506, hydraulic disc, dual piston, resin pads, S/M: 180mm rotor, Others: 200mm

Bromsar bak

Shimano Deore BR-M506, hydraulic disc, dual piston, resin pads, S/M: 160mm rotor, Others: 180mm

Bromshandtag

Shimano Deore BL-M506, hydraulic, alloy lever

Växelförare fram

SRAM X7, 10-speed, S3 direct mount for DMD, bottom pull

Växelförare bak

SRAM X5, 10-speed, mid cage

Växelreglage

SRAM X5, 10-speed, aluminum trigger, w/ MatchMaker clamp

Kassett eller ev. drev bak

SRAM PG 1030, 10-speed, 11-36

Kedja

SRAM PC 1031, 10-speed, w/ PowerLink, nickel finish

Vevparti

Custom SRAM S-1250, GXP spindle, 36/22

Vevlager

SRAM GXP XR, 73mm

Pedaler

Resin test ride, w/ toe clips, CEN std.

Fälgar

Roval 29, alloy, 21mm inner width, 32h

Nav fram

Specialized Hi Lo disc, sealed cartridge bearings, 15mm thru-axle, 32h

Nav bak

Specialized Hi Lo disc, 4 sealed cartridge bearings, 12mm thru-axle, 32h

Ekrar

DT Swiss Industry, stainless

Däck fram

Specialized Ground Control, 60TPI, 2Bliss Ready, folding bead, 29x2.3"

Däck bak

Specialized Ground Control, 60TPI, 2Bliss Ready, folding bead, 29x2.1"

Innerslang

Ultralight, presta valve

Sadel

Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm

Sadelstolpe

Specialized alloy, single bolt, 30.9mm

Sadelstolpsklämma

Specialized 7050 alloy, single bolt, 34.9mm

Ramgeometri

Frame size

S M L XL.

Seat tube length center to top

394mm 430mm 468mm 523mm.

Top tube length horizontal

555mm 587mm 612mm 642mm.

Top tube length actual

535mm 562mm 589mm 621mm.

Chainstay length

450mm 450mm 450mm 450mm.

Bottom bracket height low setting

335mm 335mm 335mm 335mm.

Seat tube angle actual low setting

70° 70° 70° 70°.

Seat tube angle effective low setting

75° 74.8° 74.5° 74.2°.

Head tube angle low setting

70° 70° 70° 70°.

Wheel base

1100mm 1131mm 1156mm 1186mm.

Standover height

745mm 755mm 758mm 762mm.

Head tube height

90mm 100mm 125mm 150mm.

Handlebar width

720mm 720mm 720mm 720mm.

Stem length

60mm 75mm 90mm 100mm.

Crank length

170mm 175mm 175mm 175mm.

Seatpost length

350mm 350mm 400mm 400mm.

Stack

591mm 600mm 624mm 647mm.

Reach

400mm 428mm 445mm 466mm.
